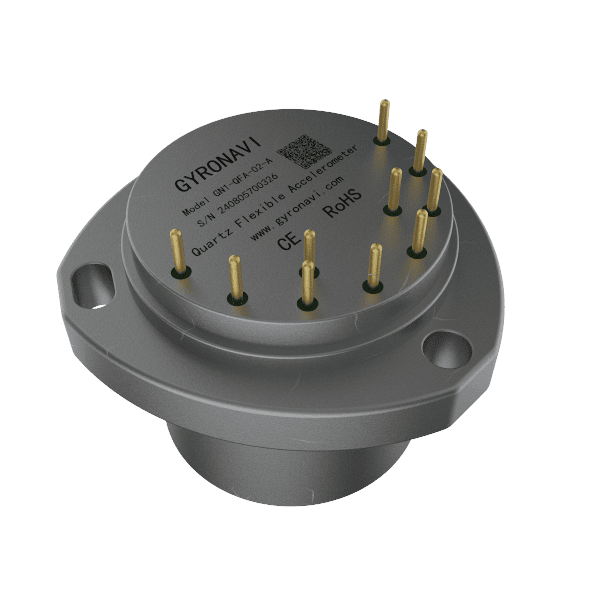

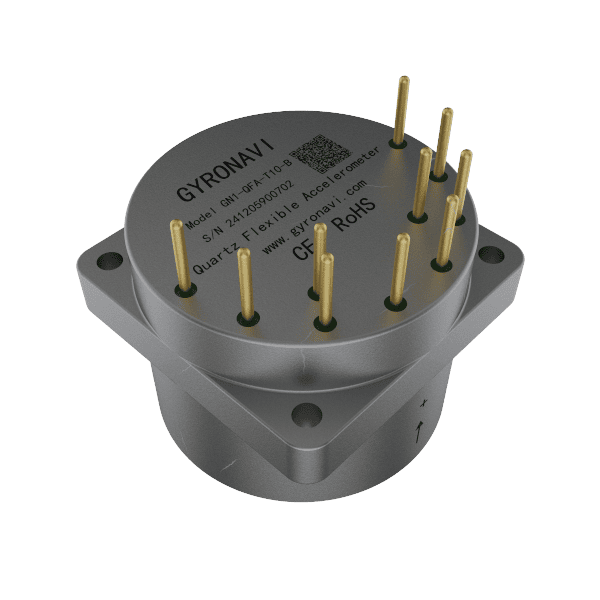

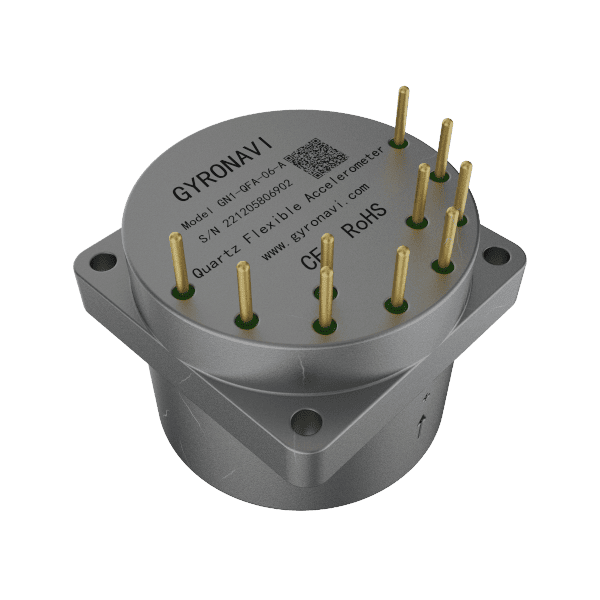

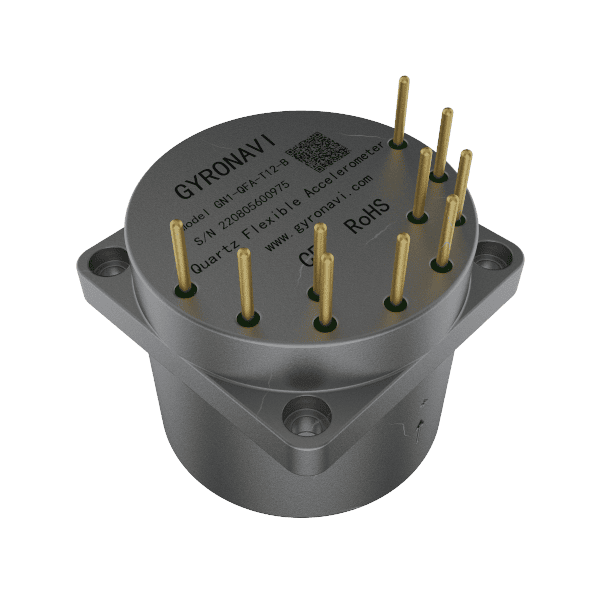

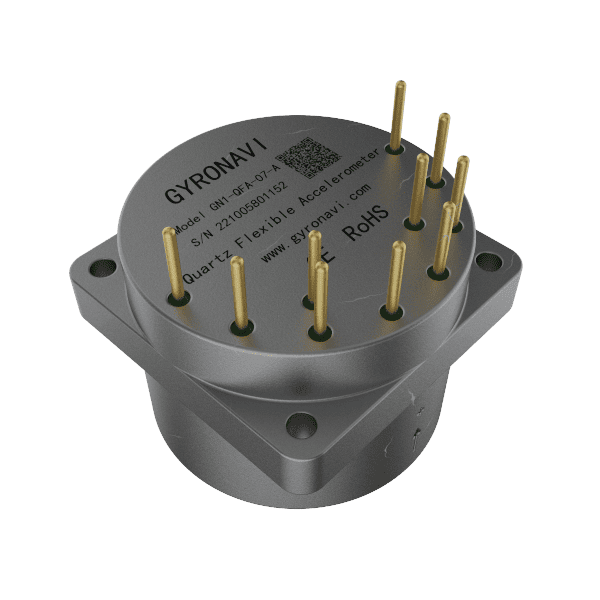

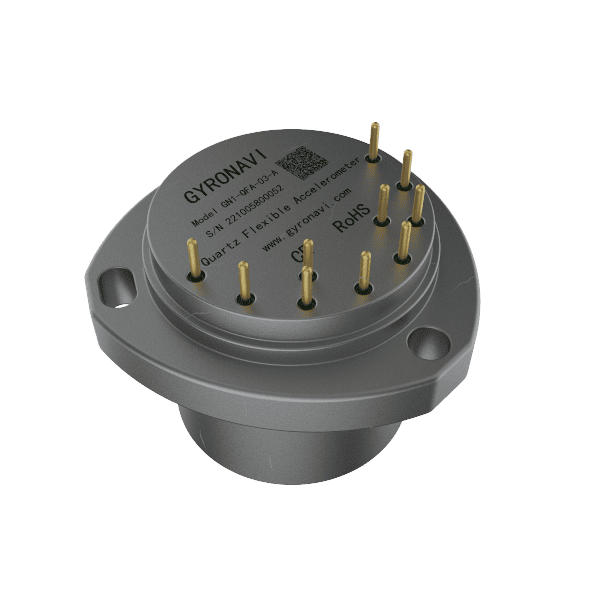

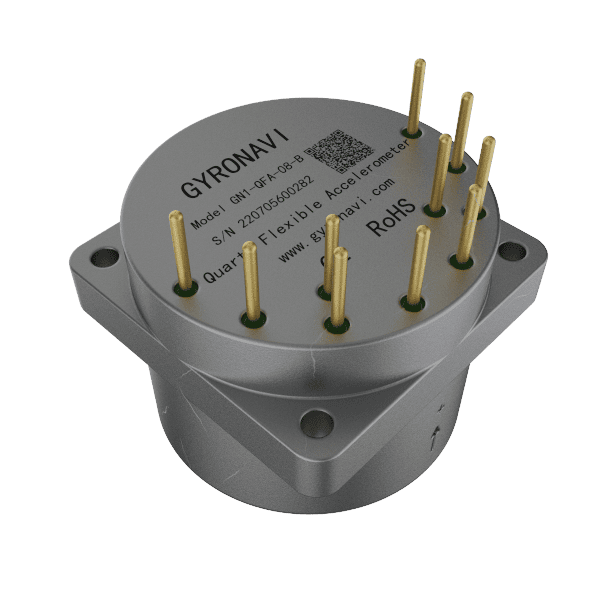

Quartz Flexible Accelerometers
Frictionless quartz flexure. Micro-g precision. Extreme environments.
Our quartz flexible accelerometers use a precision quartz flexure suspension for frictionless operation. Available with bias stability from 1μg to 15μg, including specialized high-temperature models rated to +180°C for downhole drilling. Applications include satellite microgravity, missile INS, oil & gas MWD, and seismic monitoring.
| Technology | Quartz Flexure Pendulous Accelerometer |
|---|---|
| Measurement Range | ±2g to ±70g (model-dependent) |
| Bias Stability | 1μg – 15μg (1σ, short-term) |
| Resolution / Threshold | < 1μg |
| Scale Factor Repeatability | ≤ 10 ppm – 50 ppm |
| Operating Temperature | -40°C to +85°C (standard); +150°C to +180°C (HT series) |

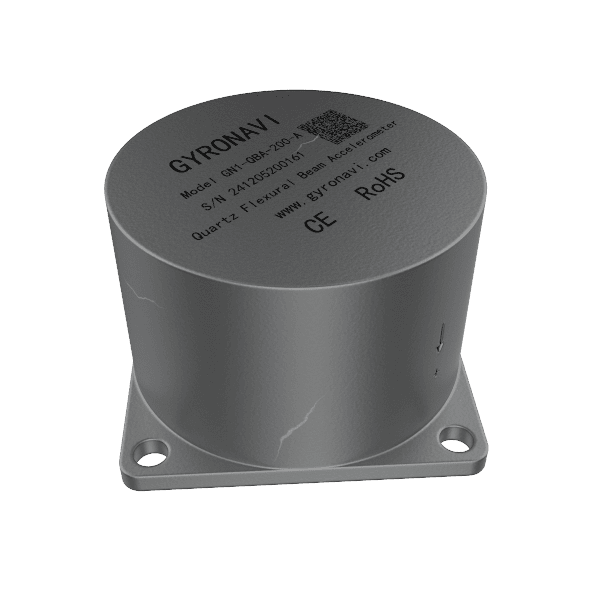

| Dimensions | Φ18 × 14 mm (compact); Φ25.4 × 23 mm (HT/QBA series) |
| Weight | 15 g – 55 g (model-dependent) |
